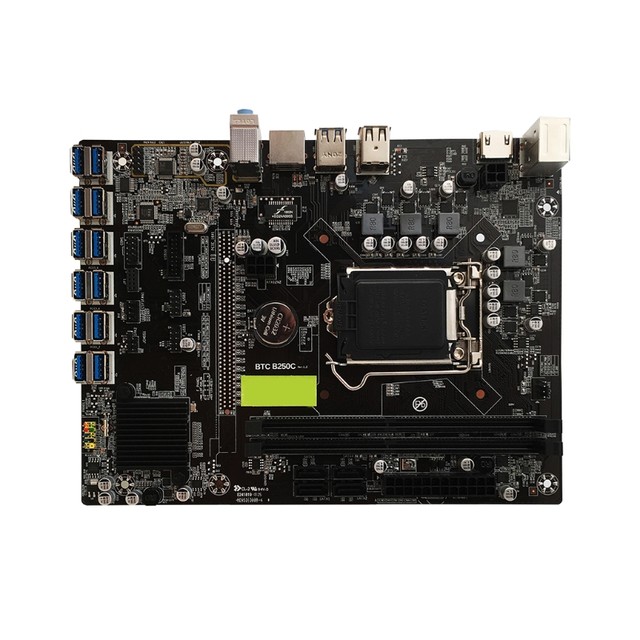

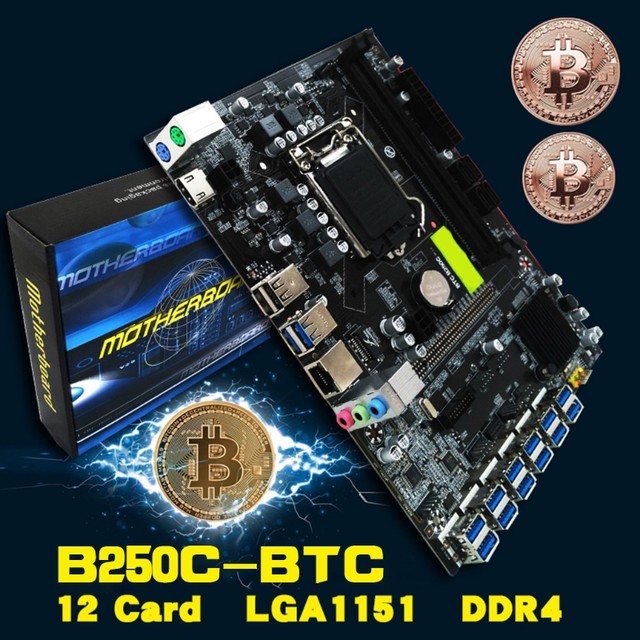

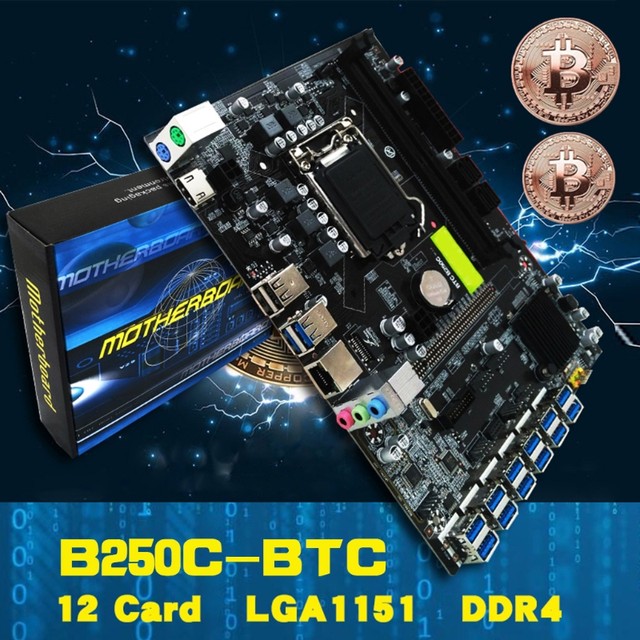

LX0B BTC Motherboard B250C BTC CPU Miner Motherboard DDR4 12 PCI-E Graphics Card Support LGA 1151 GPU Cryptocurrency Mining
Features: 100% brand new and high quality
Compact and portable: being so mini and light-weight, this product does not take much space and can be easily taken away.
Durable material: This product is made of high-quality material, durable, long service time, firm and stable in use.
Meticulous workmanship: The meticulous design, perfect in workmanship, durable and long service time.
Perfect match: According to the original model design, perfect replacement installation, high-quality components.
Quick start, loading and file transfer. Low power consumption, quiet, reliable and durable.
Specification: Main chipset: Intel B250C
Memory: Max 16GB
Size: approx. 23X17.5cm/9.05x6.88in
CPU socket: LGA 1151

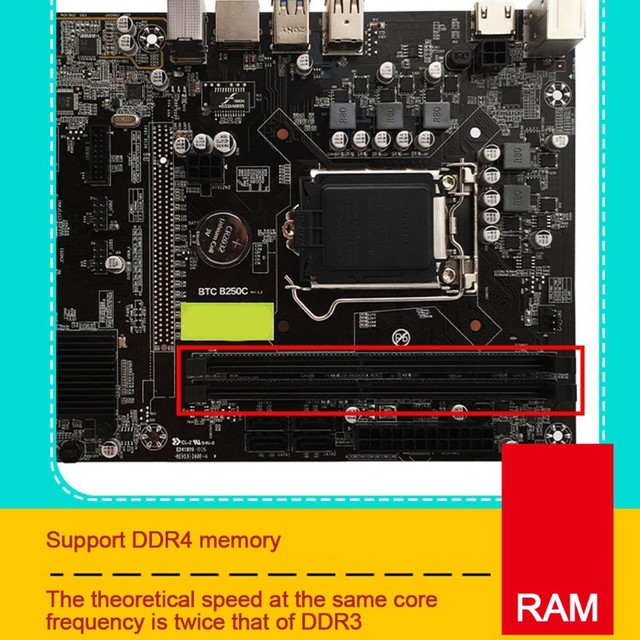

Memory slot: 2×DDR4 DIMM memory slot
Frequency: 2133/2400 MHZ
Network card chip integration: RTL8111F 100M network card
Audio chip integration: 6-channel audio chip
Processor specifications: CPU platform Intel Core 6, 7th generation / Pentium / Celeron
12× USB3.0 to PCI-E X1 graphics slot
2 x USB2.0 pins
1 x USB3.0 pin
1 x COM pin
1 x 6pin square power port
4 x SATA3.0 port
PS/2 port keyboard and mouse universal port 2
1×RJ45 network port
1×HDMI-compatible high definition output
2xUSB 3.0 port, 4xUSB 2.0 port
Power jack: ATX4pin+ATX24pin 12V+ATX24 PIN
BIOS: AMI 64MB FLASH ROM
Package Includes: 1PC x B250C BTC Mining Motherboard
note: Please allow 0-1 inch error due to manual measurement. Thanks for your understanding.
Monitors are not calibrated same, item color displayed in photos may look slightly different from the actual item.
Jia hua yu B250C 12 p motherboard dig and matters needing attention
1, the board BIOS defaults to dig this mode, the CPU performance requirements is not high, six and seven generation using Intel 1151 CPU can be. 12 pieces of graphics on the memory requirements, recommend the use of at least 8 gb of memory, is greater than or equal to 16 gb of memory. (online commentary on Windows using 12 video card when mining using less than 16 gb of memory may appear unstable phenomenon, also can increase the virtual memory, manual changes Linux dedicated system didn't this phenomenon)
2, when using discrete graphics, the default on the onboard integrated graphics output, according to independent video card does not show (unless the CPU without explicit function)
3, if use 12 CARDS at the same time ensure sufficient power supply. No side crash may occur or be rate decreases.
4, due to the common Windows system, graphics driver support to the six largest graphics card, so when a dozen graphics are used to install the UEFI mode Win10 64 online update to the latest version of system, so the driver can be normal to normal installation.
5 U disk must be UEFI mode, system, method attached behind. Installation of the system must be updated to the latest version.
6, hard disk partition type select GUID mode
First step: after received the mainboard, good hardware and line, the BIOS does not need operation, first making UEFI system disk, I can provide online MediaCreationToolx64 production software, method: (in a computer can connect to the Internet directly run the tool, simplified Chinese, win10 pro, x64, next to other computers to create a disk medium, choose after u disk, the next step, until it is completed, will ready a win10 UEFI model system disk, in the system tray to pack mill system can.)
The second step: make good UEFI Win10 U disk after a 64 - bit system, plug 12 pieces of graphics, from U disk guide for installation, the installation process to partition and format the hard drive after choose the first partition installation system, for the first time after the installation is complete when they enter the system briefly grey screen phenomenon (before entering system check graphics equipment) belongs to the normal phenomenon. Enter the system after the system update to the latest version. After install the driver can normal Indian arrowheads.
Summary of 12 CARDS B250 ore board four aftersale problem:
, according to the 5 6 a, the card can be inserted card 7 or 8 card does not show.
Because the customer changed Bi0S for normal mode, to reiterate again, our factory factory default for mining mode, to dig what all need not change.
Second, deny u disk and hard disk win10 when loading (default mining mode)
Reasons for the system tray made into UEFi mode startup disk, hard disk partition type GUID, directly after the can.
Three, a lot of customer system (win10 ghost is the edition of bottoms in normal mode, can only six seven CARDS.
Four, UEFi mode driver can't drive because system didn't update to the latest version.
